Commercial Lighting Products

Tenon Bracket

    Specifications

    BKA-NM-*-CLR: Tenon Mount Fitter.

    Single/D-180 Drilled Tenon Bracket for Flat Surface Brackets

    Single/D-180 (Drilled 2 Sides). For flat surface brackets.

    D90/T90/Q90 Drilled Tenon Bracket for Flat Surface Brackets

    D90/T90/Q90 (Drilled 4 Sides). For flat surface brackets.

    BKS-NM-PA-40-CLR: Parallel Arm 2″ x 8″ x 40″ (51mm x 203mm x 1016mm) Tenon Adaptor. Note: Tenon mount parallel arms are designed for direct mounting of fixture to face of bracket. Standard arms not required, except for Hilton Series.

    Parallel Arm Tenon Adaptor

    Tenon Mount Fitter: For Radius Surface Brackets

    BKA-RNM-TN120-CLR

    BKA-RNM-TN120-CLR - Tenon Brackets - WLS Lighting

    Drilled 3 sides at 120°. For Square fixtures, RPP2 is required.

    BKA-RNM-Q90-CLR

    BKA-RNM-Q90-CLR - Tenon Brackets - WLS Lighting

    Drilled 4 sides at 90°. For Square fixtures, RPP2 is required.

    BKA-NM-MA-5-CLR: Mast Arm Adaptor. (Cannot be used w/ Hilton Series) Slip fits 2″ pipe (2-3/8″ (60mm) O.D.)

    BKA-NM-MA-5-CLR - Master Arm Adaptor - WLS Lighting

    BKA-NM-ADJ-*-CLR: Tenon Mount Adjustable (Direct mount of fixture to bracket-discard arm). Not compatible with certain fixtures. Consult factory.

    BKA-NM-ADJ-*-CLR - Adjustable Tenon Mount - WLS Lighting

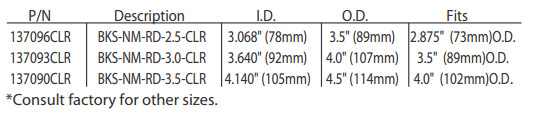

    Tenon Reducers

    Tenon Reducers - WLS Lighting
    Tenon Reducers - WLS Lighting

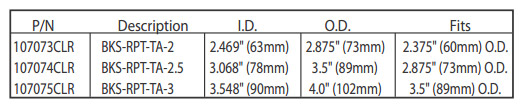

    Pole Top Adaptor

    Pole Top Adaptor
    Pole Top Adaptor






    Footnotes

    1. RNM requires RPP2 or RPPC
    2. 2.5″ 3.0″ 3.5″ I.D. i.e. size is reduced to standard size 2-3/8″ O.D.
    3. The bracket EPA should be added to the fixture EPA when selecting the proper pole.
